Features
PP sheet is one of the most widely used industrial materials. The pressed sheet has the characteristics of heat resistance, fire resistance, wear resistance, impact resistance, and corrosion resistance. It is generally used in acid-resistant sheds, cold storage partitions, and as a compartment material board for dust factory engineering and special places.
Machine Features:

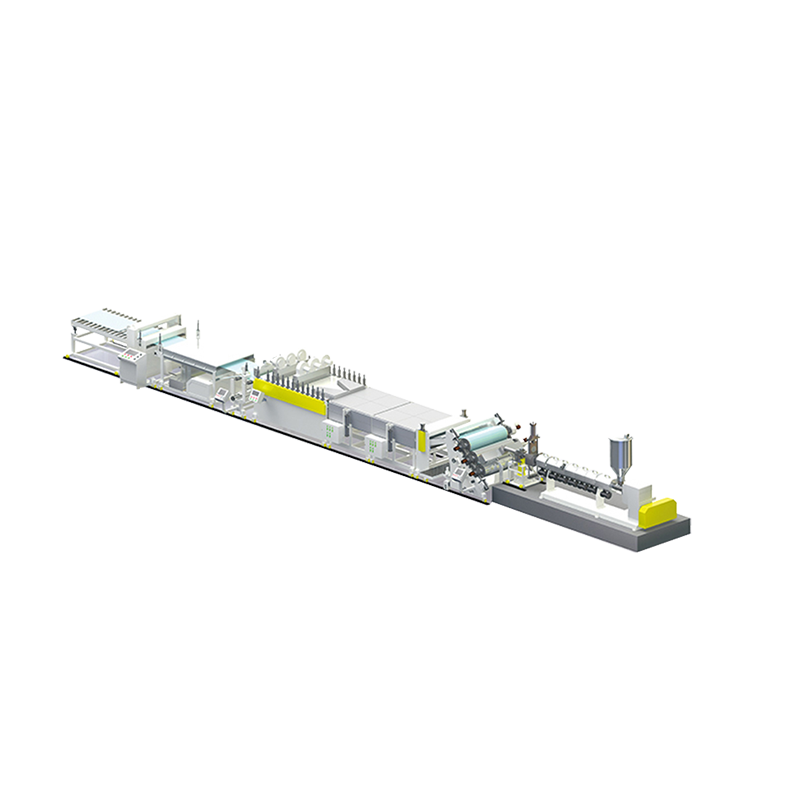

- New design, 800kg/hr high filler content variable corrugated PP sheet production line.
- Fully automatic feed system with capacity to simultaneously measure 10 kinds of recycled materials, raw materials and additives, able to self-adjust feed amounts according to production requirements, thereby reducing wasted raw materials.
- High productivity twin-screw extruder, automatic filtration system, gear measuring machine, and 45° calendar.
- Triangular feed oven: Heat resistant to 450°C, multi-point temperature control ensures homogenous molding temperatures.
- Adjustable forming roll to control the optimal corrugation size.
- Specially designed cooling equipment for optimal shaping and relaxation.
- Automatic cutting and stacking conveyor to match the corrugated profile to ensure the neatest stacking.
Specifications
| Item | Description |
|---|---|
| Materials | PP |
| Extruder | Twin screw extruders are available in φ58/58mm~φ92/92mm according to customer preference. Single screw available in φ90mm~φ180mm |
| Productivity | 200kg／hr ~ 800kg／hr |
| Extruder HP | 190~375kW High efficiency AC three phase frequency converter motor |
| Line Speed (max) | 12m／min |
| T-DIE | Die head width 1000~2100mm Product thickness 0.6~4.0mm |
| Forming Rollers | φ300~φ500mm x 3 Sets |
| Haul-off Equipment | 1 set |
| Annealing Oven | 2~3 Sets |
| Corrugating Machine | Depends on pattern |
| Edge Trimmer | 2 Sets |
| Waste Crusher | 2 Sets |
| Cooling Equipment | 1 Set |
| Micro-computer Cutting Unit | 1 Set |
| Automatic Hydraulic Lifter | 1 Set |
