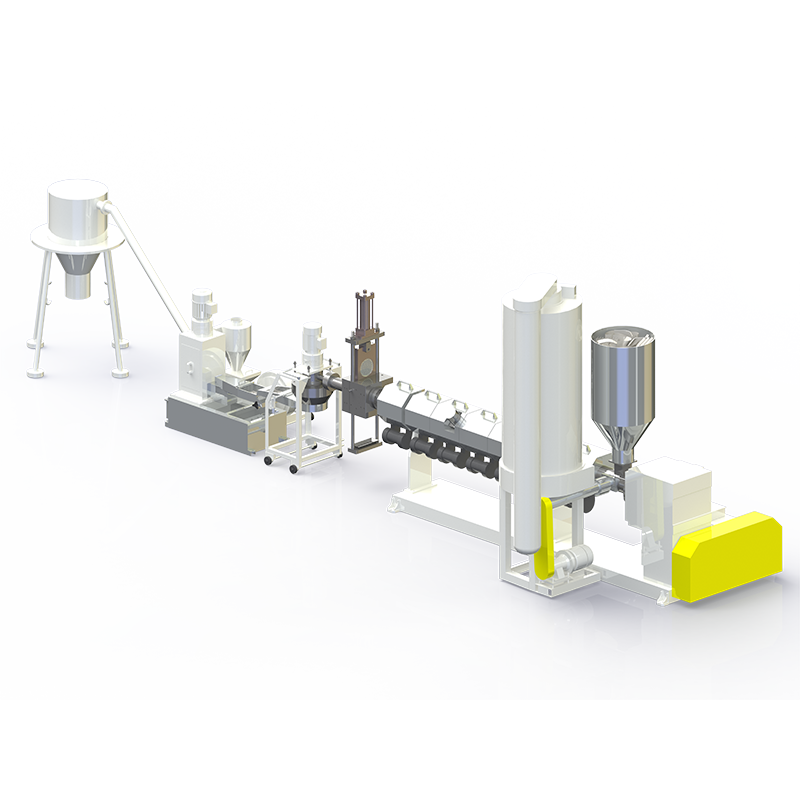

Plastic Film Granulator for Waste Plastic: CPP/PC/PE/PET/PLA/TPU Granulation Machine
Features
This machine takes advantage of a unique screw and gearbox design for improved speed and longer operations. It ensures high mixing, excellent dispersal, high efficiency, and high productivity while minimizing power consumption and noise.
This machine meets current market demand as it can be used for recycling many types of plastic film, sheets, and particles. The vertical feed die head, optimal cooling performance, and ideal pellet size are all excellent features of this system.
Specifications
Item | Description |
---|---|
Materials | PC/PP/PE/PET/ABS/PMMA |
Feed System | 1500kg side mixer & φ115mm side forced feed screw |
Extruder | Screw φ75mm, φ100mm, φ120mm Vacuum exhaust on cylinder available depending on the material |
Extruder HP | 56kW~187kW High-efficiency AC 3 phase frequency converter motor |
Productivity | 150kg/hr~500kg/hr |
Die Head | Circular water ring pelletizing - Hole diameter and number of blades according to material |
Water Removal Unit | Water Removal Unit |
Material storage | Feed blower and storage tank |
