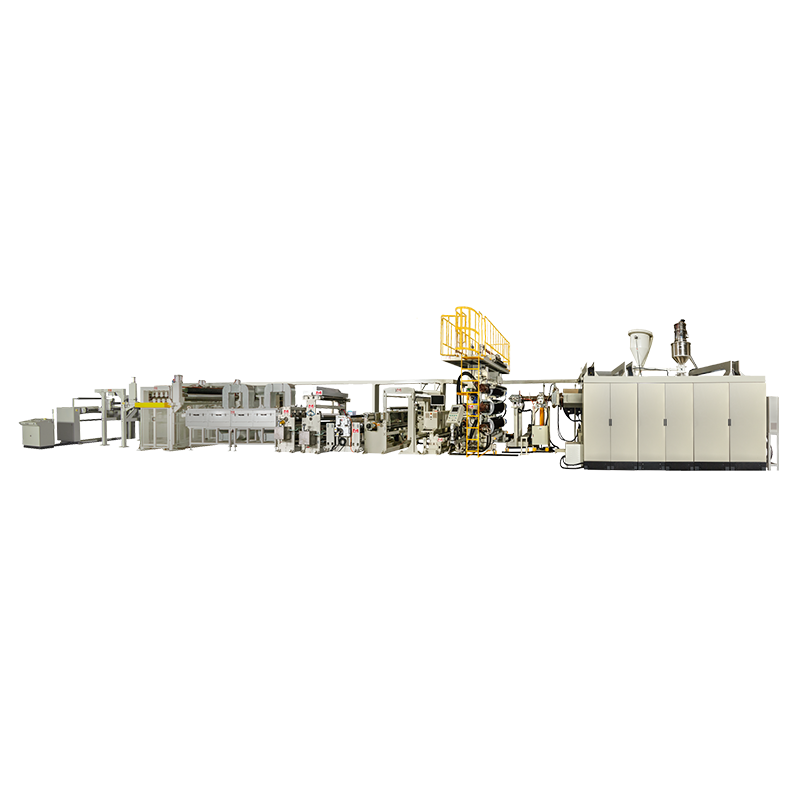

The transparency and barrier properties of PET sheets make them versatile in thermoforming applications. It is widely used in various blister/printing decoration fields such as toys, stationery products, panels, signs, handicrafts, water treatment, etc., as well as in the fields of pharmaceutical and food packaging containers. Please feel free to contact LEADER for PP and PS sheets as well.
| Item | Description |
|---|---|
| Materials | PETG／APET／ PP／PC／PS／ABS／PE／PMMA |
| Extruder | Main screw φ90mm, φ100mm, φ120mm, φ150mm, φ180mm Auxiliary screw φ35mm, φ55mm, φ75mm |
| Capacity | 200kg／hr~1000kg／hr |
| Line Speed (max) | 50m／min |
| T-DIE | Mold width 600mm~3000mm Product thickness 0.2mm~2mm |
| Forming Rollers | φ300~φ500mm x 3set |
| Auto Thickness Tester | 1 set |
| Cooling Equipment | 1 set |
| Pull Rollers | 1 set |
| High Strength Slitter | 2 set |
| Scaffold | 1 Set (for film use) |
| Spooling Machines | 2~3 Sets - Single spindle / center spool |
| Cutter | 1 Set (Opt.) |
