Features
The T-die head and the forming calender maintain a stable and flat plate. The extruded plate is firm and good in quality, has very good temperature resistance, and is suitable for high-temperature thermoplastic processing and molding. We can customize the machine to achieve customers' requirements.

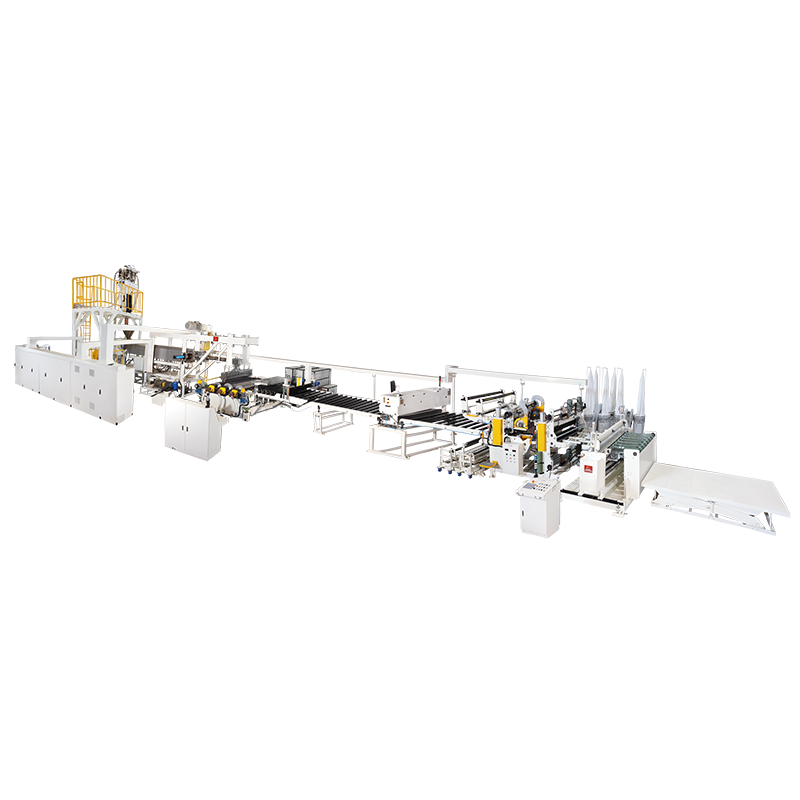

PC&ABS Sheet Co-Extrusion line is designed for producing suitcases. The process of making leather suitcases is generally known to have two methods: injection and extrusion. For how to use recycled materials, we adopt the co-extrusion method. Using 80% ABS recycled materials as the bottom layer, it still retains the high impact resistance and hardness, toughness, and rigidity. 20% of the outer layer is made of PC new material, depending on the brightness and beauty of PC, then through the process of thermoforming to make a beautiful suitcase.
Specifications
| Item | Description |
|---|---|
| Materials | PP |
| Extruder | Twin screw extruders are available in φ58/58mm~φ92/92mm according to customer preference. Single screw available in φ90mm~φ180mm |
| Productivity | 200kg／hr ~ 800kg／hr |
| Extruder HP | 190~375kW High efficiency AC three phase frequency converter motor |
| Line Speed (max) | 12m／min |
| T-DIE | Die head width 1000~2100mm Product thickness 0.6~4.0mm |
| Forming Rollers | φ300~φ500mm x 3 Sets |
| Haul-off Equipment | 1set |
| Annealing Oven | 2~3 Sets |
| Corrugating Machine | Depends on pattern |
| Edge Trimmer | 2 Sets |
| Waste Crusher | 2 Sets |
| Cooling Equipment | 1set |
| Micro-computer Cutting Unit | 1set |
| Automatic Hydraulic Lifter | 1set |
